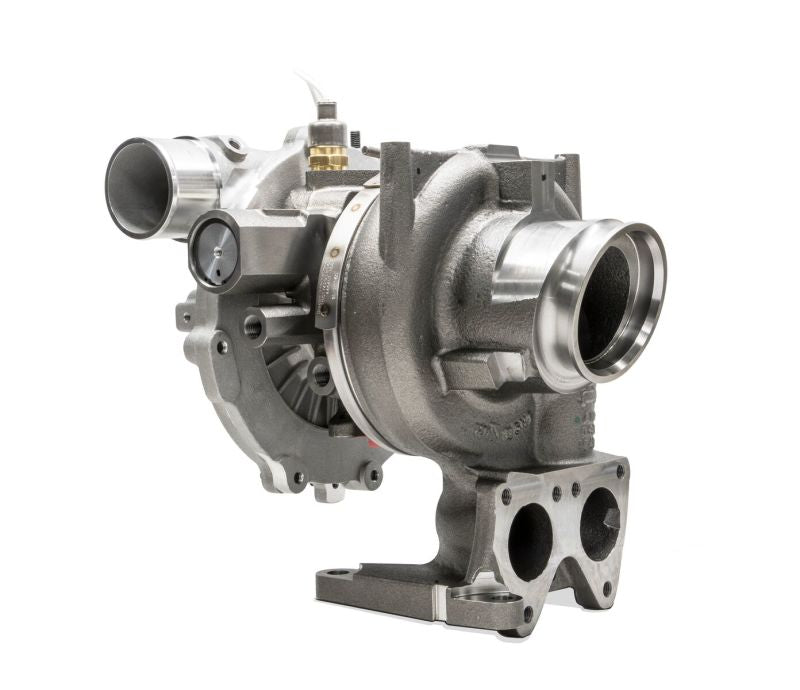

Garrett PowerMax GT3788V Stage 1 Turbo for 2011-2016 Chevy/GMC 2500HD/3500HD 6.6L Duramax LML

GRT886976-5004S

Want more turbo for your 2011-2016 LML Duramax without changing how it bolts in? The Garrett PowerMax Stage 1 turbo is a direct drop-in upgrade for the Chevy and GMC 2500HD and 3500HD 6.6L.

Garrett rates it at 19% more flow than the OEM turbo, and it is built to support up to 600 HP (Garrett estimate based on compressor choke flow). A lightweight forged, fully machined compressor wheel is where that extra flow and efficiency come from. It is outline interchangeable with the factory turbo, so it fits the way the stock unit did.

Specs

  • Part number: 886976-5004S
  • Type: PowerMax Stage 1 direct drop-in upgrade
  • Flow: 19% more than OEM, per Garrett
  • Power support: up to 600 HP, Garrett estimate (results depend on your modifications and tuning)

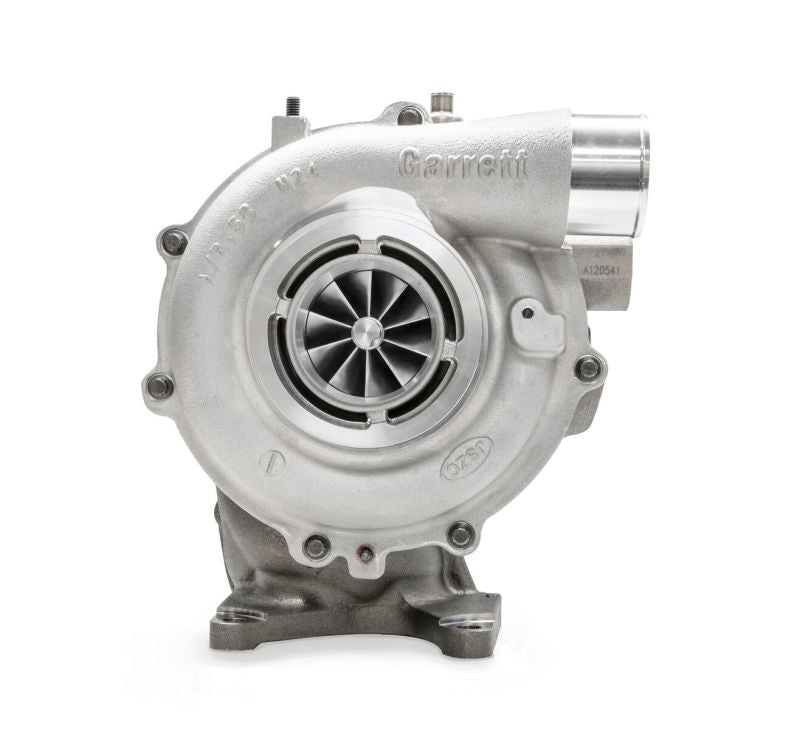

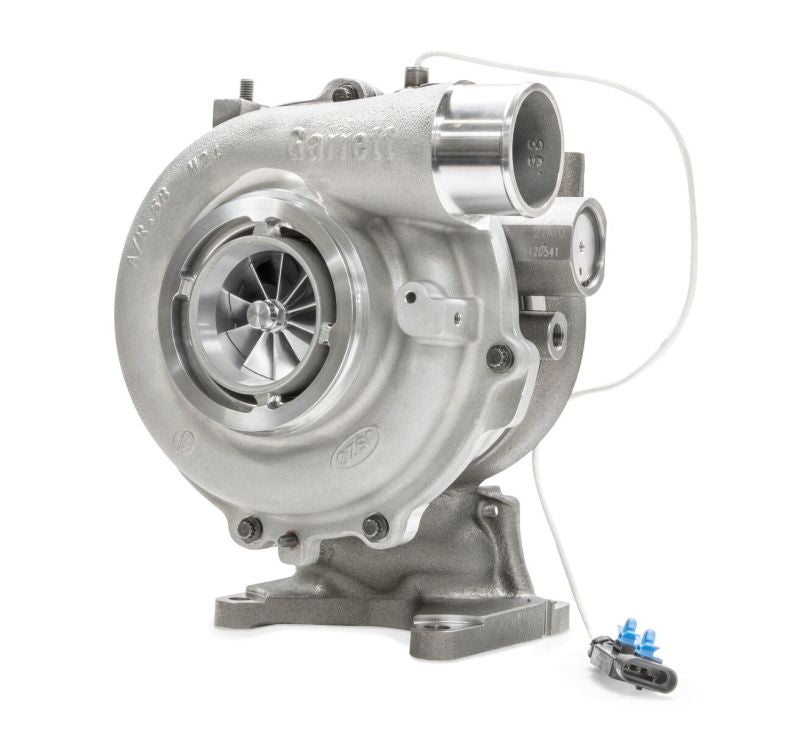

  • Compressor wheel: lightweight forged, fully machined

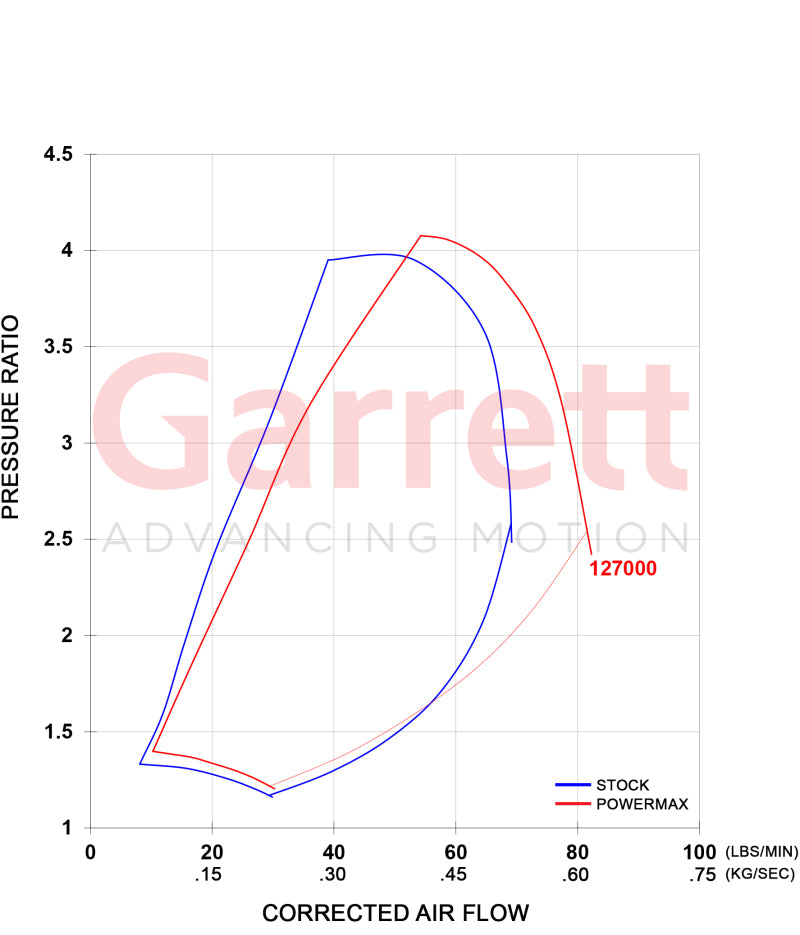

  • Compressor: 65mm inducer, 91mm exducer, 55 trim, 0.58 A/R
  • Turbine: 72mm inducer, 62mm exducer, 75 trim, 0.90 A/R
  • Install: outline interchangeable with OE hardware

Vehicle fitment

Per Garrett for part 886976-5004S: 2011-2016 Chevrolet / GMC 2500HD and 3500HD with the 6.6L Duramax LML.

Garrett: "Legal in California only for racing vehicles which may never be used, or registered or licensed for use, upon a highway."

Garrett: "Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies."

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.
