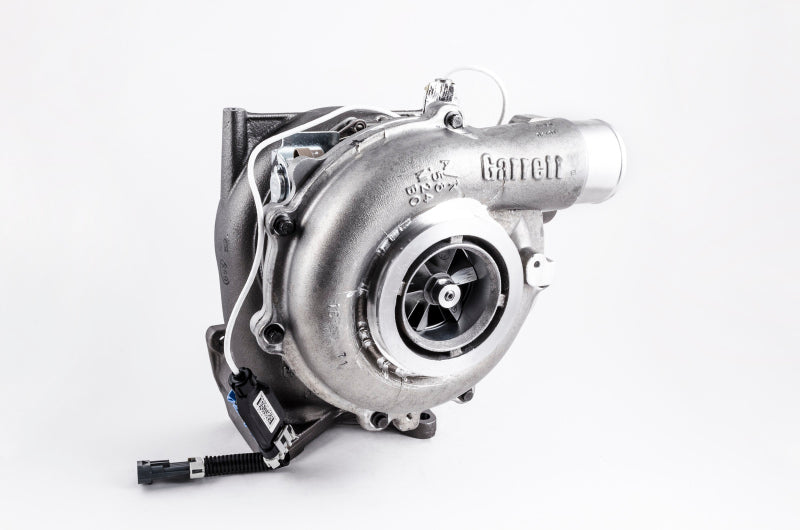

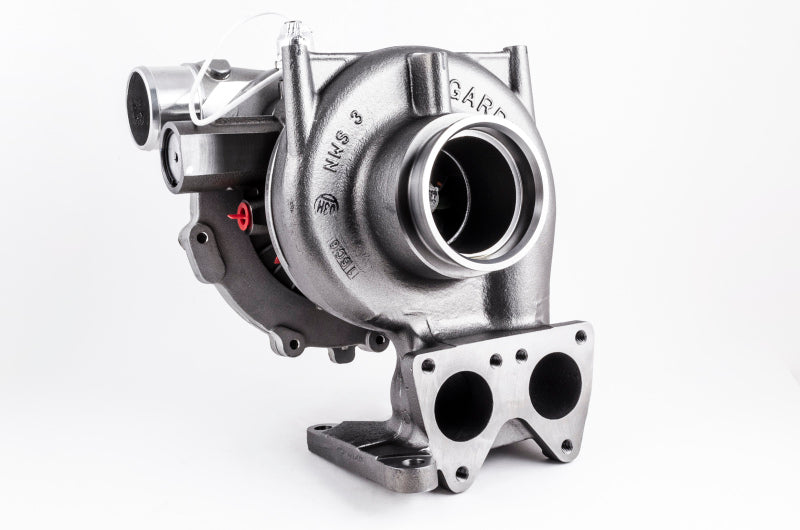

Garrett PowerMax Stage 1 AVNT Turbo Kit for 2004.5-2009 Chevy/GMC 6.6L Duramax

GRT773540-5001S

Your 2004.5-2009 Duramax is due for a turbo, so why not make it a real upgrade? The Garrett PowerMax Stage 1 kit fits Chevy and GMC 2500 and 3500 trucks and works as a performance upgrade or a straight replacement for the factory unit.

It uses Garrett's patented AVNT (Advanced Variable Nozzle Turbine) design with nine movable vanes for more compressor and turbine flow. Garrett says that boosts turbine efficiency and engine performance from idle launch through peak torque. GT Series wheels deliver lower back pressure and reduce intake and exhaust gas temperatures. Patented integral electro-hydraulic actuation with a proportional solenoid gives infinitely variable vane control.

Specs

  • Part number: 773540-5001S (Stage 1)
  • Rated power: 590 HP, Garrett estimate (results depend on your modifications and tuning)
  • Turbine: AVNT variable nozzle, nine movable vanes
  • Actuation: integral electro-hydraulic with proportional solenoid
  • Wheels: GT Series design
  • Compressor: 65mm inducer, 94mm exducer, 48 trim, 0.58 A/R
  • Turbine: 73mm inducer, 67mm exducer, 78 trim, 0.90 A/R
  • 2004.5-2005 trucks: use the included vane position sensor wiring adapter (771864-1); not needed on 2006 and newer
  • Install: outline interchangeable with the OE turbo

Vehicle fitment

Per Garrett for part 773540-5001S: 2004.5-2009 Chevy / GMC 2500 and 3500 with the 6.6L Duramax.

Garrett: "Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies."

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$3,102.82 USD
$3,102.82 USD
Sale Sold out
Shipping calculated at checkout.
