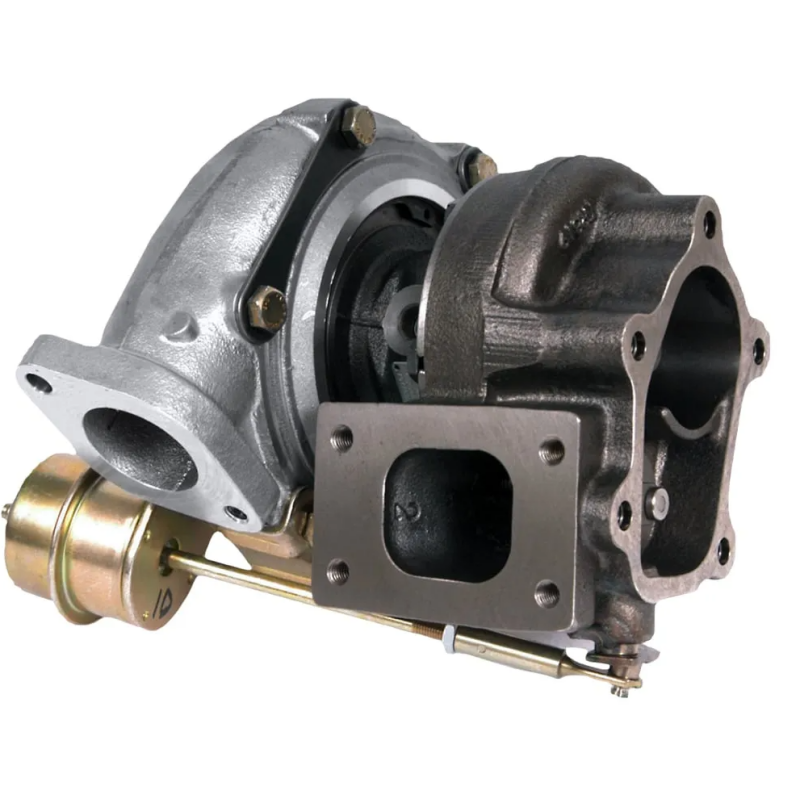

Garrett GT2860R Ball Bearing Turbocharger, Internal Wastegate (836026-5005S)

GRT836026-5005S

Want a complete turbo you can bolt on without piecing together housings and an actuator? The GT2860R ships as a complete unit with turbine kit and actuator.

It uses original GT Series aero with a 47mm compressor, a ball bearing water cooled CHRA and an internally wastegated turbine housing. Garrett rates it for 250 to 360 HP on 1.8L to 3.0L engines and lists it as a bolt-on upgrade for the Nissan RB26DETT.

Specs

  • Turbo PN: 836026-5005S
  • Horsepower rating: 250-360, Garrett estimate
  • Displacement: 1.8L-3.0L
  • Compressor: 47mm inducer, 60mm exducer, 0.60 A/R
  • Turbine: 54mm inducer, 47mm exducer, 76 trim, 0.64 A/R
  • Bearing: ball bearing, water cooled CHRA
  • Wastegate: internal, actuator included

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$1,543.41 USD
$1,543.41 USD
Sale Sold out
Shipping calculated at checkout.
