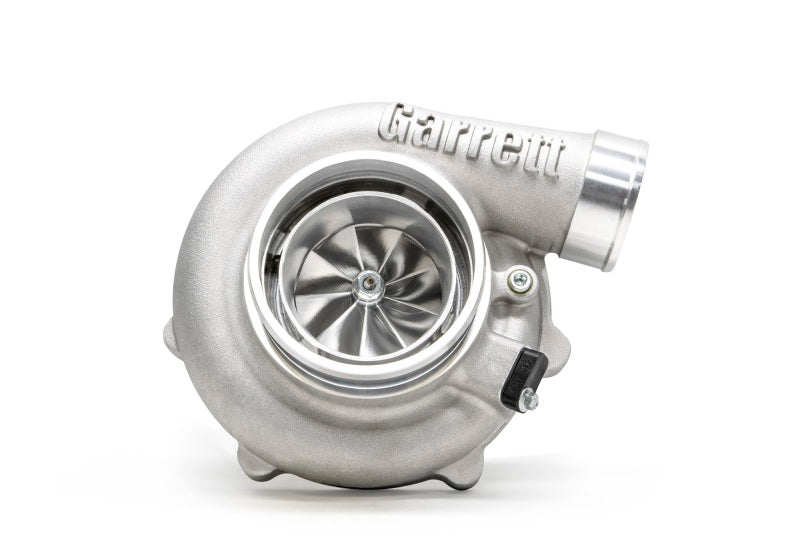

Garrett G35-900 62mm Supercore, Standard Rotation (880695-5001S)

GRT880695-5001S

Running more displacement, up to 5.5L? The G35-900 supercore puts a 62mm compressor on the larger G35 turbine, rated by Garrett for 550 to 900 HP.

Garrett offers free float turbine housing kits for it in T4 divided, T3 and V-Band inlet layouts, and the speed sensor and pressure ports are fully machined.

Specs

  • Supercore PN: 880695-5001S, standard rotation (reverse rotation 880696-5001S)
  • Horsepower rating: 550-900, Garrett estimate
  • Displacement: 2.0L-5.5L
  • Compressor: 62mm inducer, 76mm exducer, 65 trim, 0.72 A/R
  • Turbine: 68mm inducer, 62mm exducer, 84 trim, Mar-M alloy rated to 1050° C
  • Max compressor efficiency: 77%
  • Max turbo speed: 145,000 rpm (speed sensor sold separately)
  • Included: oil restrictor and water fittings
  • Turbine housing: sold separately; Garrett lists matching turbine housing kits on its page

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.
