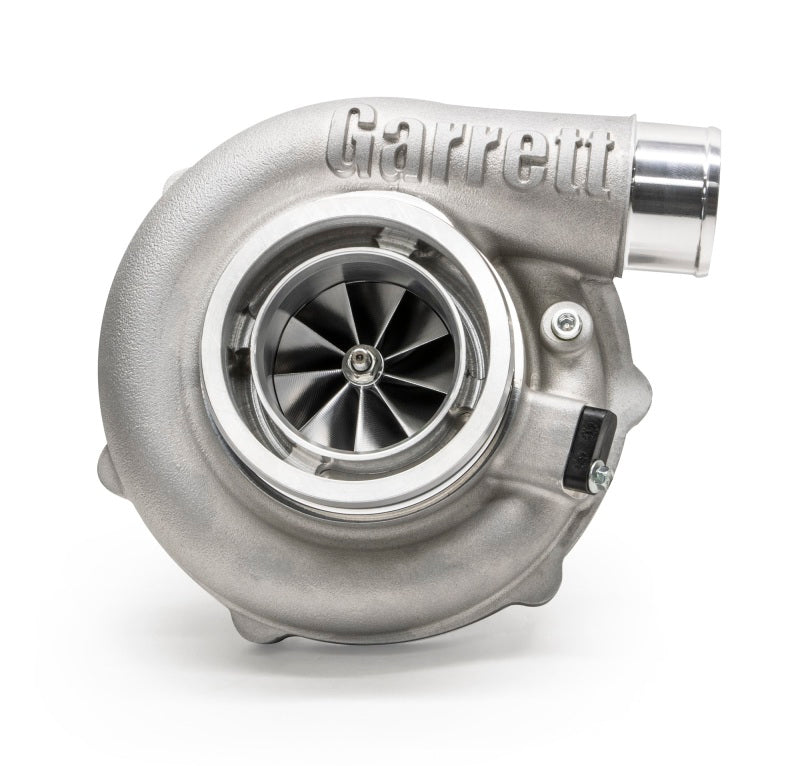

Garrett G30-770 58mm Supercore, Standard Rotation (880693-5002S)

GRT880693-5002S

If you're building a turbo setup around a 2.0L to 3.5L engine, the Garrett G30-770 supercore gives you G Series compressor aero and a 58mm compressor wheel in a compact package, rated by Garrett for 475 to 770 HP.

The turbine side runs a Mar-M alloy wheel rated up to 1050° C with new turbine aero for higher flow and efficiency. Speed sensor and pressure ports come fully machined, and Garrett includes the oil restrictor and water fittings.

Specs

  • Supercore PN: 880693-5002S, standard rotation (reverse rotation is 880694-5002S)
  • Horsepower rating: 475-770, Garrett estimate from compressor choke flow
  • Displacement: 2.0L-3.5L
  • Compressor: 58mm inducer, 71mm exducer, 65 trim, 0.72 A/R
  • Turbine: 60mm inducer, 55mm exducer, 84 trim, Mar-M alloy rated to 1050° C
  • Max compressor efficiency: 76%
  • Max turbo speed: 150,000 rpm (speed sensor sold separately)
  • Included: oil restrictor and water fittings
  • Turbine housing: sold separately
  • Compatible G30 turbine housing kits (standard rotation) include, per Garrett: 740902-0092 (1.06 A/R, T4 divided), 740902-0090 (0.83, T3), 740902-0091 (1.01, T3), 740902-0086 (0.61, V-Band), 740902-0087 (0.83, V-Band), 740902-0088 (1.01), 740902-0089 (1.21), 740902-0094 (0.83, internal wastegate)

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.
