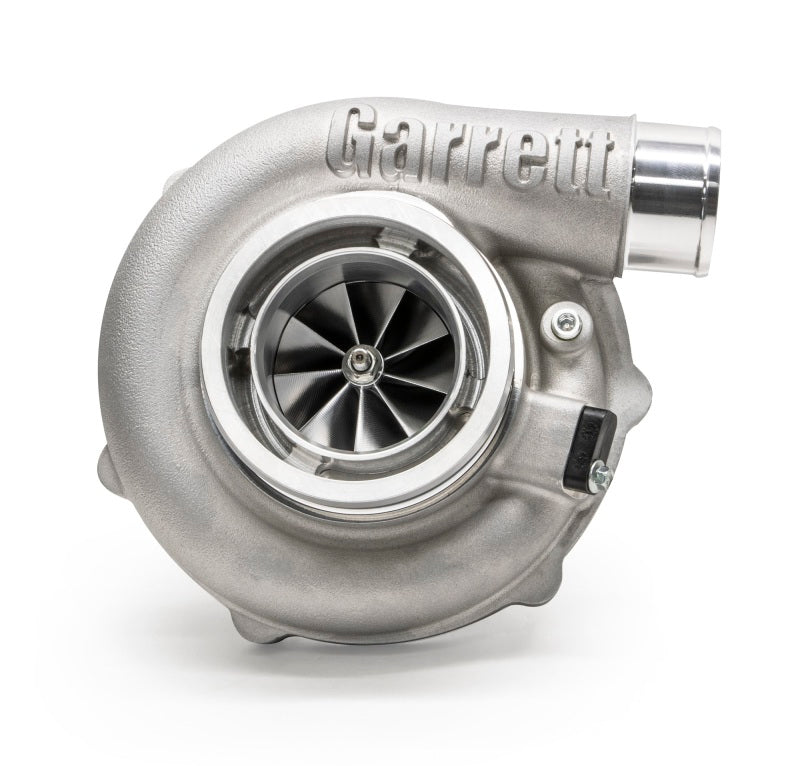

Garrett G30-660 54mm Supercore, Standard Rotation (880693-5001S)

GRT880693-5001S

The G30-660 is the 54mm member of Garrett's G30 family, with a 54mm compressor wheel rated for 350 to 660 HP on 2.0L to 3.5L engines.

It pairs G Series compressor aero with Garrett's new turbine aero, and the speed sensor and pressure ports are fully machined.

Specs

  • Supercore PN: 880693-5001S, standard rotation (reverse rotation 880694-5001S)
  • Horsepower rating: 350-660, Garrett estimate
  • Displacement: 2.0L-3.5L
  • Compressor: 54mm inducer, 67mm exducer, 65 trim, 0.70 A/R
  • Turbine: 60mm inducer, 55mm exducer, 84 trim, Mar-M alloy rated to 1050° C
  • Max compressor efficiency: 79%
  • Max turbo speed: 165,000 rpm (speed sensor sold separately)
  • Included: oil restrictor and water fittings
  • Turbine housing: sold separately; Garrett lists matching turbine housing kits on its page

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$2,176.53 USD
$2,176.53 USD
Sale Sold out
Shipping calculated at checkout.
