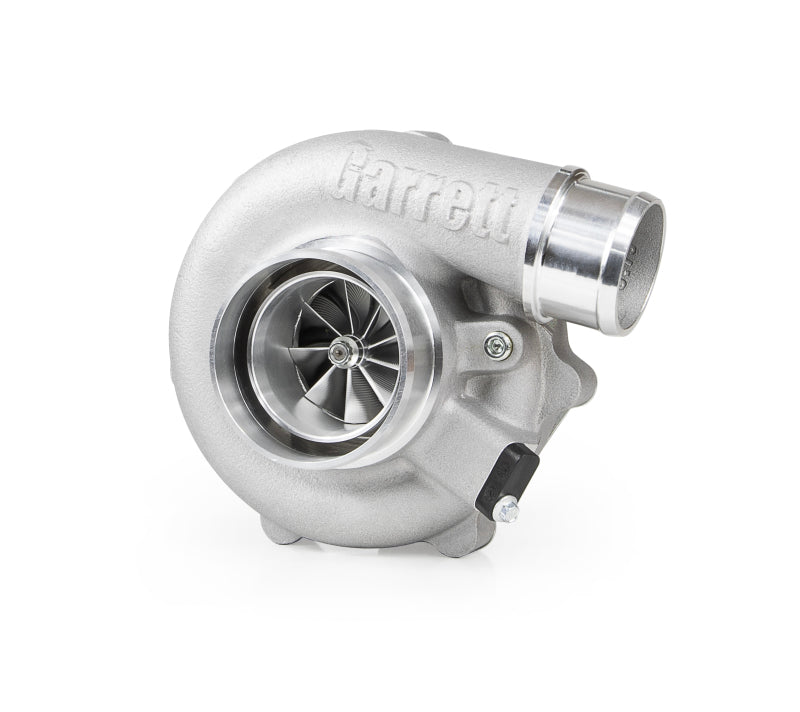

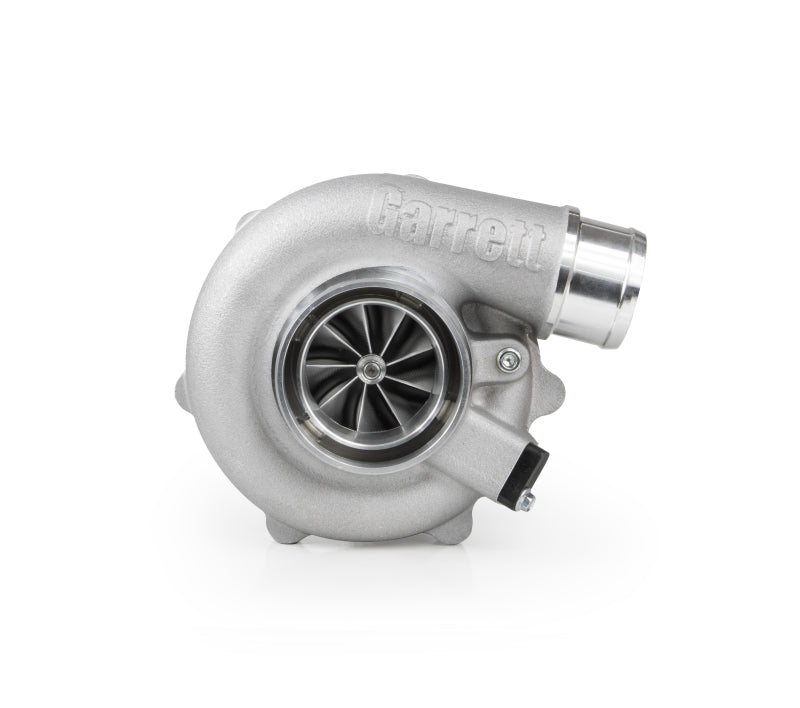

Garrett G25-585 G-Series II 48mm Supercore, Standard Rotation (934075-5001S)

GRT934075-5001S

Already have a G25-550 and want more? The G-Series II G25-585 supercore uses your Gen I housings and is rated by Garrett for 300 to 585 HP on 1.4L to 3.0L engines.

Garrett's new compressor aero flows up to 10% more than Gen I at peak pressure ratio and peak turbo rpm. Gen I owners can also upgrade with just the CHRA (934074-5001S), per Garrett.

Specs

  • Supercore PN: 934075-5001S, standard rotation (CHRA 934074-5001S; reverse rotation supercore 934114-5001S)
  • Horsepower rating: 300-585, Garrett estimate
  • Displacement: 1.4L-3.0L
  • Compressor: 48mm inducer, 60mm exducer
  • Turbine: 54mm inducer, 49mm exducer
  • Turbo reference: 4849
  • Housings: uses G-Series Gen I compressor and turbine housings
  • Turbine wheel: Mar-M alloy rated to 1050° C
  • Max turbo speed: 185,000 rpm (speed sensor sold separately)
  • Included: oil restrictor and water fittings

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$1,937.14 USD
$1,937.14 USD
Sale Sold out
Shipping calculated at checkout.
