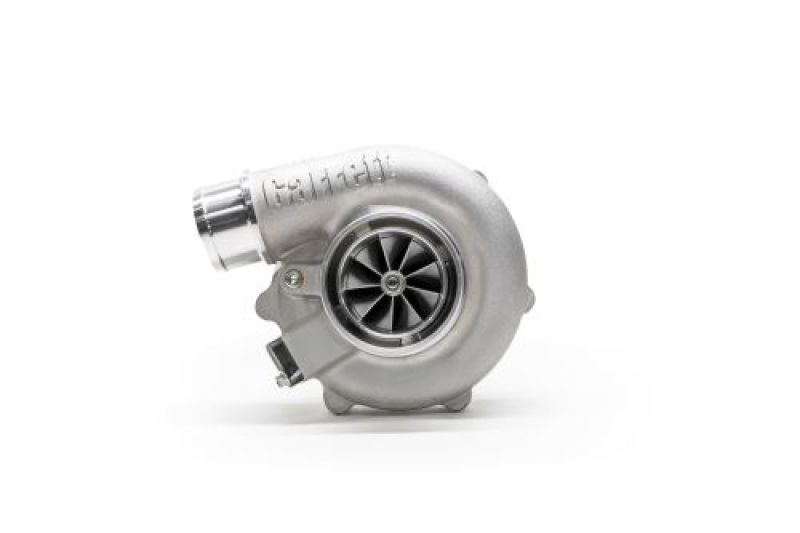

Garrett G25-550 48mm Supercore, Standard Rotation (858161-5002S)

GRT858161-5002S

For a 1.4L to 3.0L build, the G25-550 supercore brings G Series aero and a 48mm compressor wheel, rated by Garrett for 300 to 550 HP.

Garrett's new turbine aero adds flow and efficiency, and the speed sensor and pressure ports are fully machined.

Specs

  • Supercore PN: 858161-5002S, standard rotation
  • Horsepower rating: 300-550, Garrett estimate
  • Displacement: 1.4L-3.0L
  • Compressor: 48mm inducer, 60mm exducer, 65 trim, 0.70 A/R
  • Turbine: 54mm inducer, 49mm exducer, 84 trim, Mar-M alloy rated to 1050° C
  • Max compressor efficiency: 80%
  • Max turbo speed: 185,000 rpm (speed sensor sold separately)
  • Included: oil restrictor and water fittings
  • Turbine housing: sold separately; Garrett lists matching turbine housing kits on its page

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$2,149.07 USD
$2,149.07 USD
Sale Sold out
Shipping calculated at checkout.
