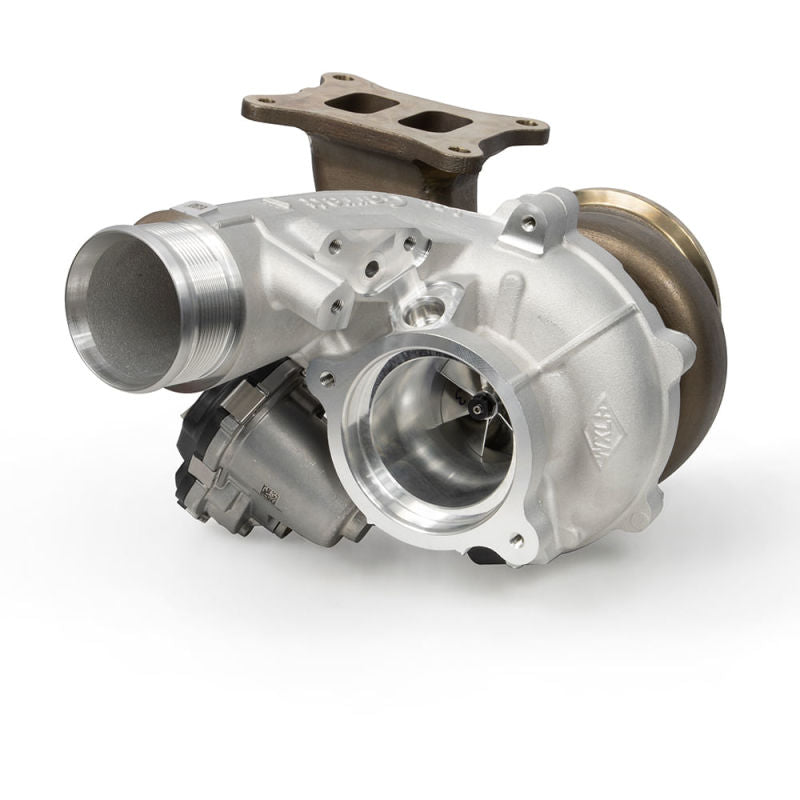

Garrett PowerMax GT2563 Direct Fit Turbo for 2022+ VW Golf R / Audi / Cupra 2.0L EA888 Evo4 (921474-5001S)

GRT921474-5001S

Garrett rates its PowerMax for the 2.0L EA888 Evo4 to 550 BHP (410kW), and in Garrett's on-vehicle dyno testing it made 520 BHP (383kW) and 425 ft-lb (576Nm).

It flows 20% more on the compressor side and 37% more on the turbine side than the OE turbo, all inside the OEM footprint. The Mar-M alloy turbine wheel and the stainless steel, internally wastegated turbine housing are rated up to 1050°C. It comes as a complete assembly with a calibrated electric actuator and a fully machined speed sensor port, and CARB EO D-871-2 covers the 2022-2024 Volkswagen Golf R 2.0L.

Specs

  • Part number: 921474-5001S
  • Emissions: CARB EO D-871-2, which covers 2022-2024 Volkswagen Golf R 2.0L
  • Turbo model: GT2563
  • Power: rated to 550 BHP (410kW); 520 BHP (383kW) and 425 ft-lb (576Nm) in Garrett's on-vehicle dyno testing
  • Compressor: 51mm inducer, 63mm exducer, 20% more flow than OE
  • Turbine: 58mm inducer, 50mm exducer, 37% more flow than OE
  • Max turbo speed: 177.8 krpm (speed sensor 781328-0003, 781328-0004 or G-Smart 923586-0003 sold separately)

Vehicle fitment

Per Garrett for part 921474-5001S:

  • VW Golf R 2022+ (North America)
  • VW Golf VIII GTI Clubsport 2020+ (Europe)
  • VW T-ROC R 4Motion 2022+ (Europe)
  • VW Golf VIII R 4Motion 2020+ (Europe)
  • VW Golf VIII Variant TSI R 4Motion 2021+ (Europe)
  • VW Tiguan TSI R 4Motion 2020+ (Europe)
  • Audi A3 Limousine S3 Quattro 2020+ (Europe)
  • Audi A3 Sportback S3 Quattro 2020+ (Europe)
  • Audi SQ2 2021+ (Europe)
  • Audi TTS Quattro 2021+ (Europe)
  • Audi Roadster TTS Quattro 2020+ (Europe)
  • Cupra Formentor 2.0 TSI 4Drive 2020+ (Europe)
  • Cupra Leon Sportstourer 2.0 TSI 4Drive 2021+ (Europe)
  • Cupra Leon Sportstourer 2.0 TSI 2021+ (Europe)
  • Cupra Leon 2.0TSI 2021+ (Europe)
  • Cupra Ateca 2.0 TSI 4Drive 2020+ (Europe)

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$2,290.18 USD
$2,290.18 USD
Sale Sold out
Shipping calculated at checkout.
