Garrett PowerMax GT1752S Turbo Kit (LH and RH) for 2021+ Ford Bronco / 2024+ Ranger 2.7L (926432-5001S)

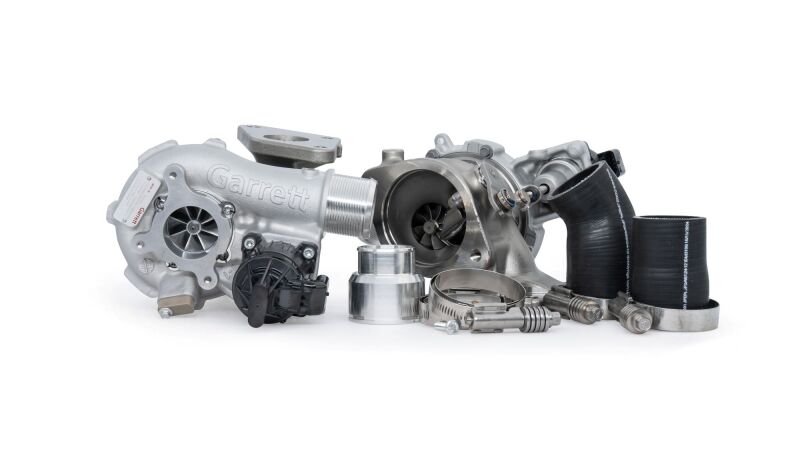

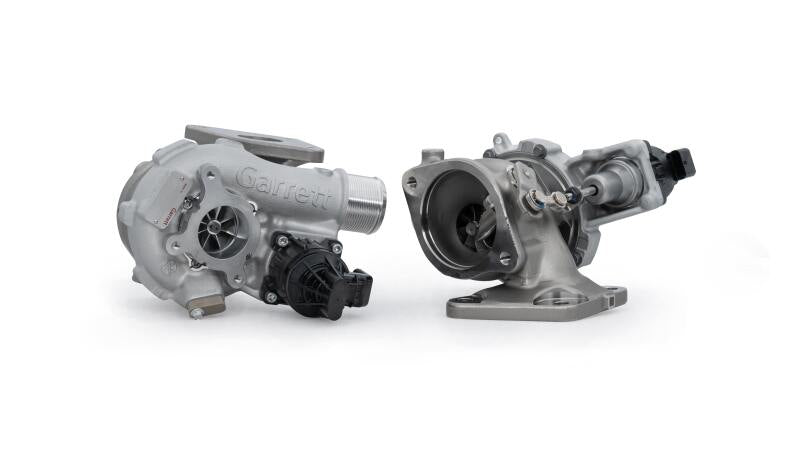

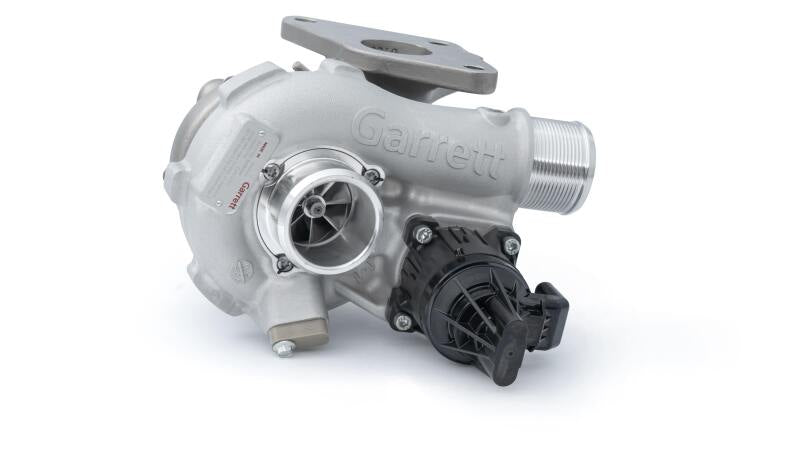

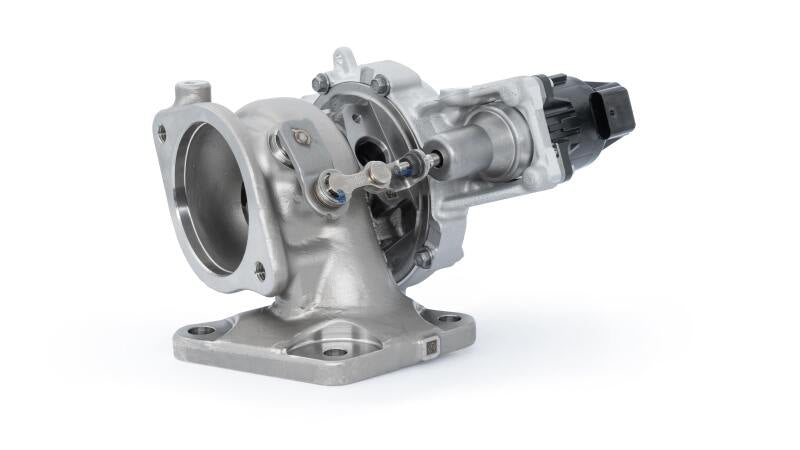

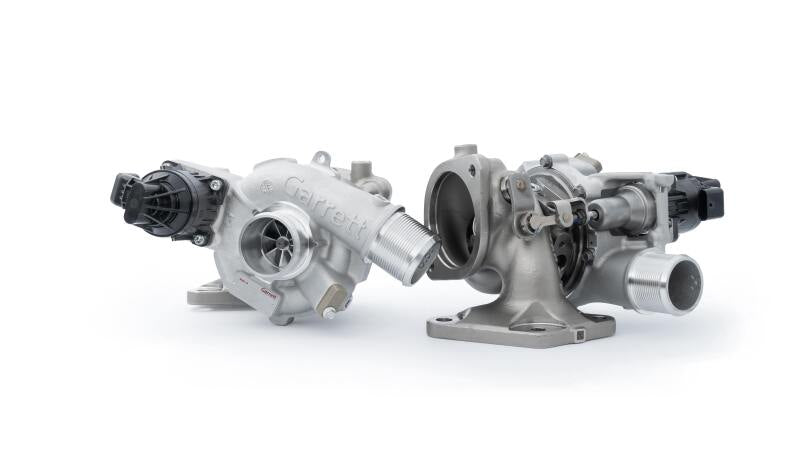

GRT926432-5001SWant more out of your 2.7L Bronco without leaving the factory layout? Garrett builds the OEM turbos for this engine, and its PowerMax kit gives you complete left and right turbo assemblies with calibrated electric actuators.
Garrett rates it to support up to 640 BHP (477kW), with 42% more compressor flow and 27% more turbine flow than the OEM turbo. The compressor inducer grows from 34mm on the OEM turbo to 41mm, and the stainless steel turbine housing is rated up to 950°C.
Specs
- Kit part number: 926432-5001S (LH 922700-5001W, RH 922701-5001W)
- Turbo model: GT1752S
- Power: up to 640 BHP (477kW), Garrett estimate
- Compressor: 41mm inducer, 52mm exducer, 42% more flow than OEM
- Turbine: 44mm inducer, 39mm exducer, 27% more flow than OEM
- Max turbo speed: 214.9 krpm (sensor 923586-0003, 781328-0003 or 781328-0004 sold separately)
Vehicle fitment
Per Garrett for part 926432-5001S:
- Ford Bronco 2.7L 2021-2025
- Ford Ranger 2.7L 2024-2025 (Lariat, XLT)
Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.
