Fleece PowerFlo Lift Pump Assembly for 1991-1997 Dodge 5.9L Cummins
FPEFPE-PF-CUMM-9197Fuel gauge dead on your 12 valve and the old pump tired? This kit fixes both in one shot.

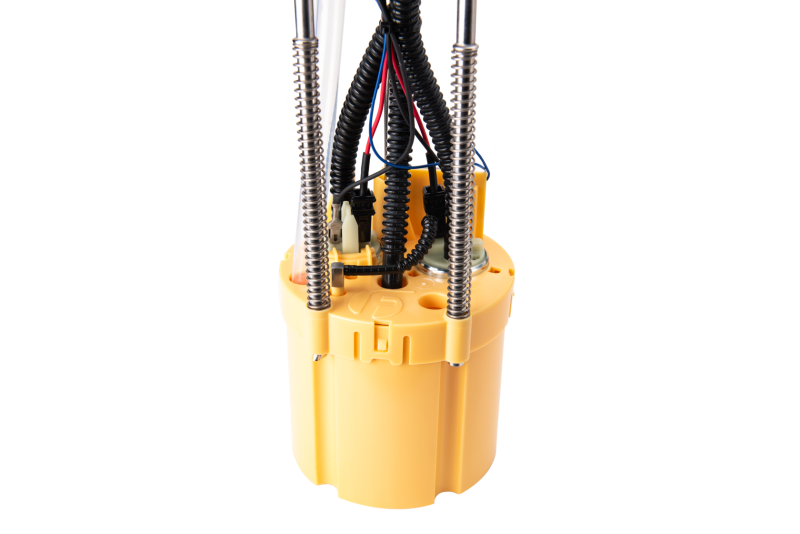

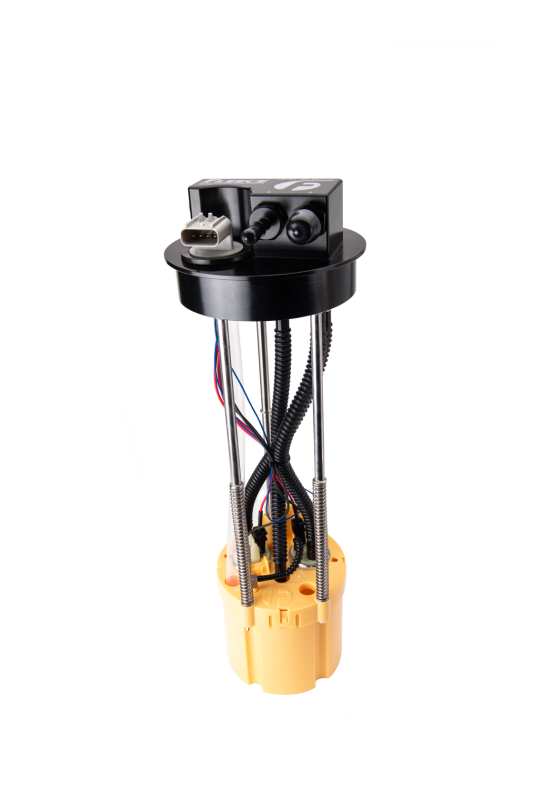

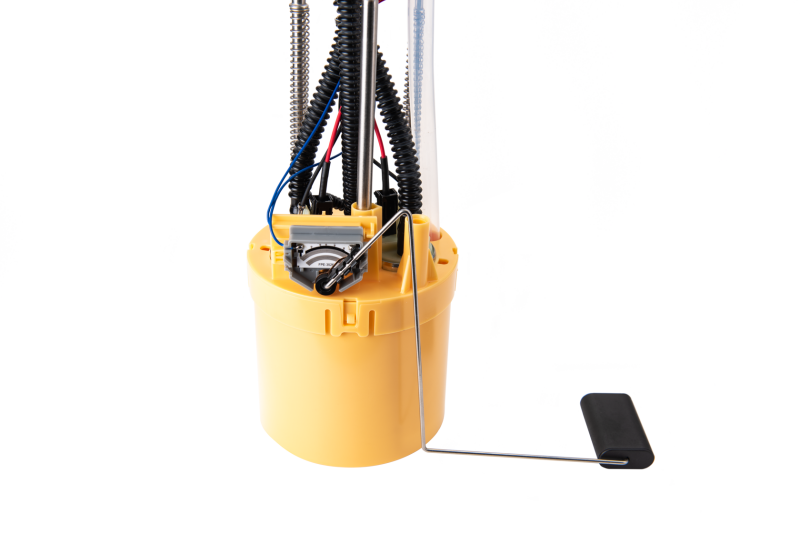

Only from Fleece, it's a complete fuel supply upgrade for the 1991-1997 Dodge Cummins. The PowerFlo goes in the tank with a new sending unit and float to get your gauge working again, and Fleece rates it as the only in-tank lift pump capable of supporting up to 800 hp.
Why it's worth it
- Direct OEM in-tank fitment: no drilling, cutting, or sumps cut into your fuel tank
- Installs in less than half the time of other high flow lift pumps
- Dual gerotor: two OEM quality gerotor pumps for more flow capacity and reliability than the factory pump
- Active fill bucket eliminates tank sumps, draw straws, and the 1/4 tank issues
Cross-reference chart (per Fleece)
- 1991, 1992, 1993: Replaces MOPAR 52018309; previously superseded 52004838, 52004937; 30 gallon tank
- 1994: Replaces MOPAR 4864735; previously superseded R4864735, 4864735; 35 gallon tank
- 1995: Replaces MOPAR 4864209; previously superseded 04798293, 52102024, 52127802, R4864209, 4864209; 35 gallon tank
- 1996, 1997: Replaces MOPAR 4798671; previously superseded 04798293, 52102024, 52127802, R4864209, 4864209; 35 gallon tank

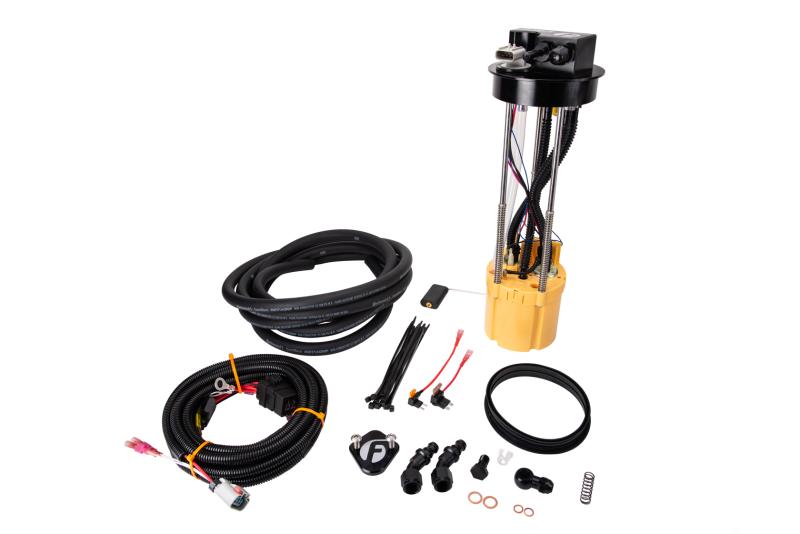

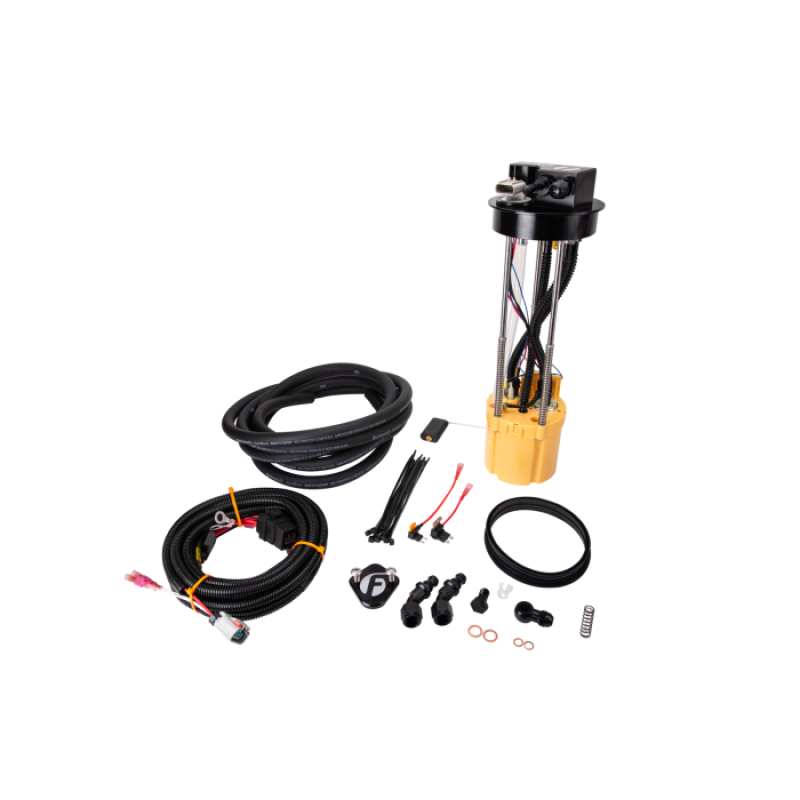

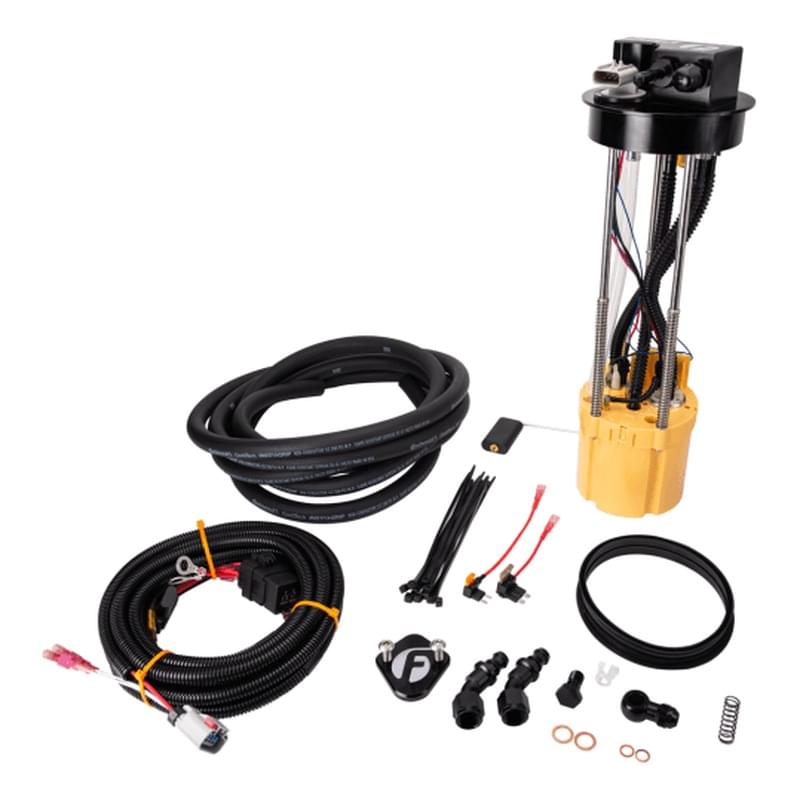

Kit includes
- PowerFlo lift pump with integral fuel sender
- 16' of push lock hose and all necessary AN and barb fittings
- Mechanical fuel pump block off plate (FPE-CUMM-FBOP)
- Wiring harness and fuse taps
- Flange tank seal
Note: IMPORTANT: Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks, and the unit will not fit into a retrofitted tank configuration.
Specs
- Supports: Up to 800 hp, per Fleece
- Engine: 5.9L 12V Cummins
- Part number: FPE-PF-CUMM-9197
Why we run it
Steady fuel supply is what keeps an older 12 valve running strong, and the PowerFlo delivers it from inside the tank. PPEI recommends Fleece PowerFlo pumps, and we run Fleece fuel parts on our own trucks.
Fitment
Fleece lists this kit for 1991-1993 Dodge Ram D250/D350 and 1994-1997 Dodge Ram 2500/3500 with the 5.9L 12V Cummins.
- Dodge D250: 1991-1993 Base
- Dodge D350: 1991-1993 Base
