Fleece Coolant Bypass Kit for 2007.5-2012 Dodge/Ram 6.7L Cummins

If you own a 2007.5-2012 6.7L and tow, the coolant bypass is the fix you want.

The rear cylinders on the 6.7L Cummins get less coolant flow and run the hottest. That builds pressure, especially at the rear of the block, and can blow out freeze plugs on the outside or the smaller plugs under the valve cover. Fleece's bypass adds a secondary thermostat that, unlike other brands, opens on temperature instead of excessive pressure, keeping all six cylinders even. It integrates for an OE fit-and-finish.

Benefits

• Lowers coolant temperature at the rear cylinders
• Ensures consistent temperatures across all six cylinders
• Prevents damaging coolant pressure build up
• Secondary thermostat that works on temperature, not excessive pressure
• Braided hose and AN O-ring fittings for a leak-free install

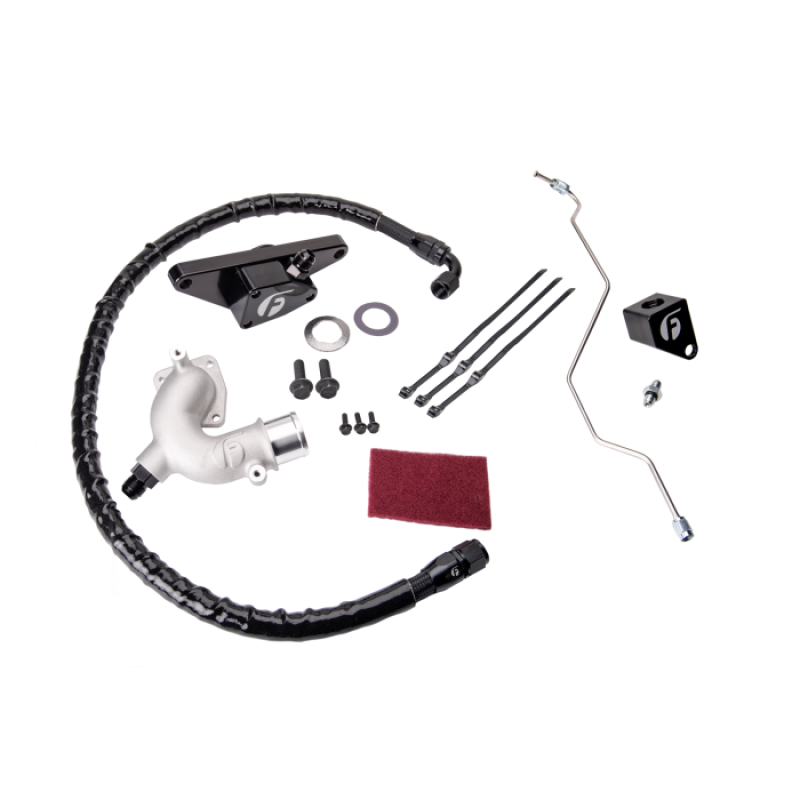

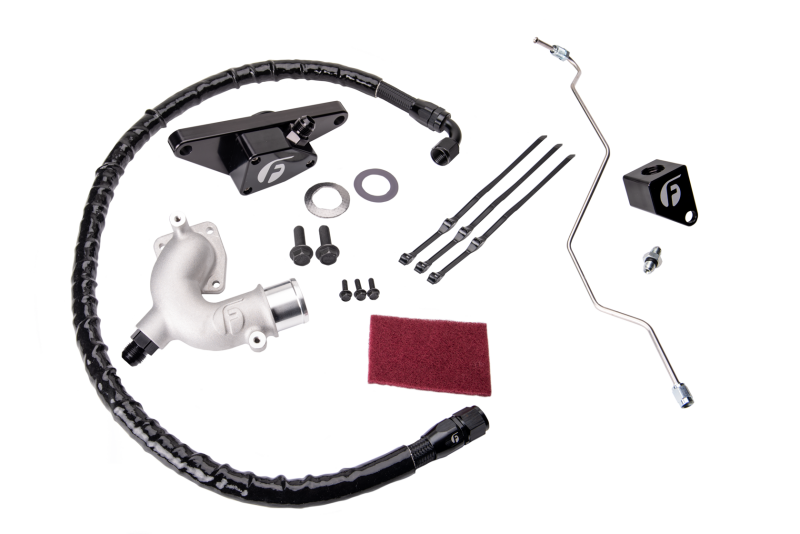

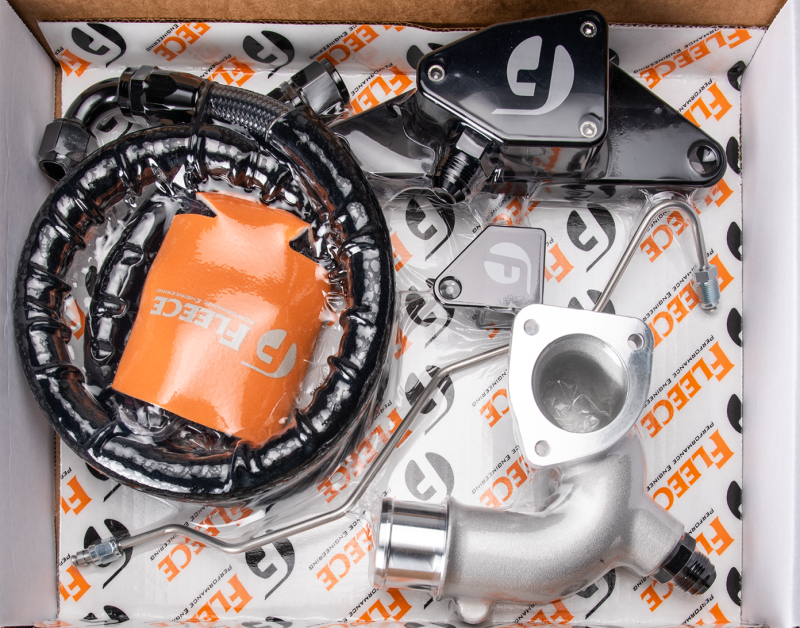

Kit includes

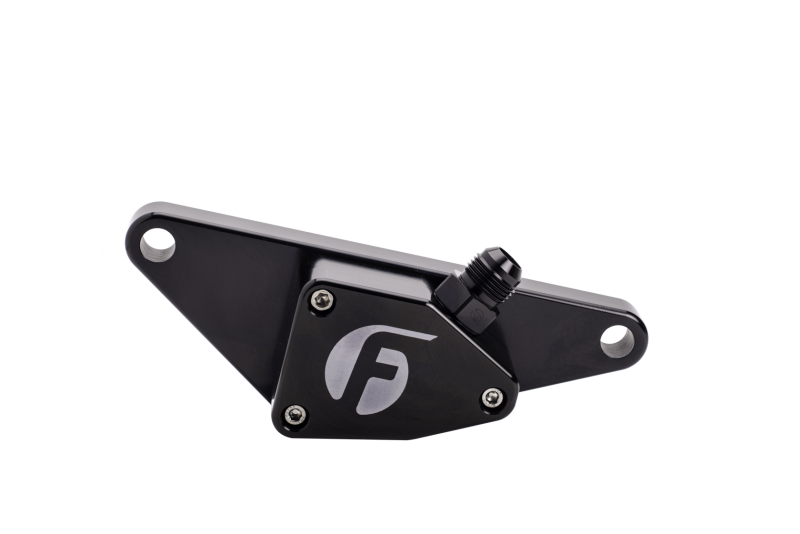

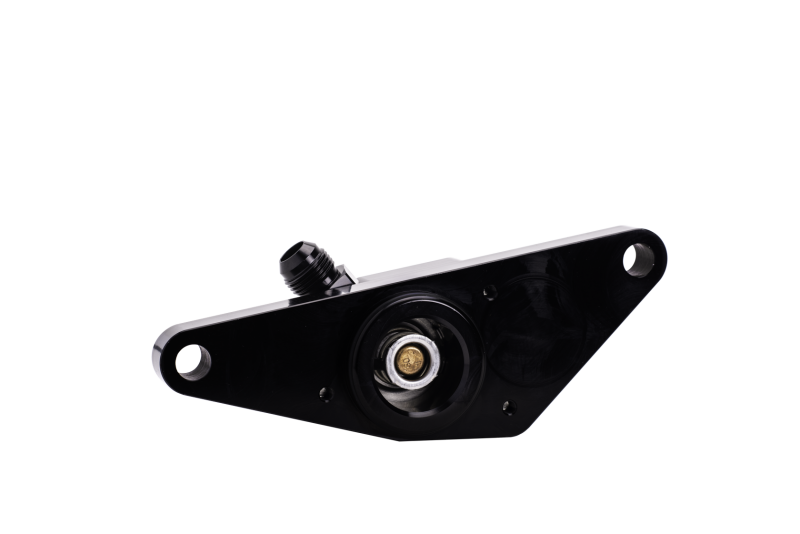

• Rear coolant bypass thermostat housing

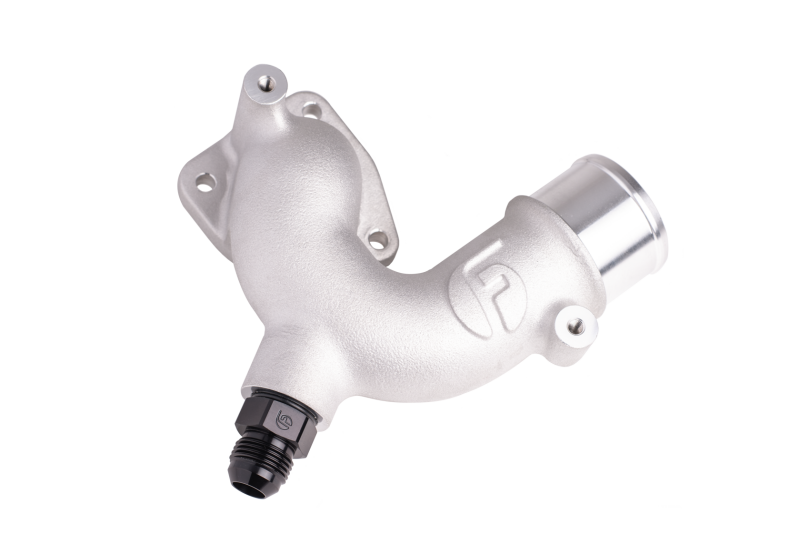

• Front coolant bypass thermostat housing
• New EGR cross-over tube gaskets
• Braided nylon coolant bypass hose with protective high temperature sleeve and AN fittings
• Exhaust back pressure sensor mounting block and back pressure sensor line
• Mounting hardware

Specs

• Engine: 6.7L Cummins
• Part number: FPE-CLNTBYPS-CUMMINS-0712
• CARB EO: D-834-7

Why we run it

The back of a 6.7L runs hotter than the front, and this kit fixes that. Fleece's temperature based thermostat gets more coolant to the rear cylinders, keeps all six even and stops pressure from building, with an OE style fit and finish. It keeps the back of the engine as cool as the front when you tow. PPEI recommends the Fleece bypass on the 6.7L, and we run it on our own trucks.

Fitment

• Dodge Ram 2500: 2007-2010 Laramie, SLT, ST; 2008-2010 SXT; 2010 TRX
• Dodge Ram 3500: 2007-2010 Laramie, SLT, ST; 2007 Sport; 2008-2009 SXT
• Ram 2500: 2011-2012 Laramie, Laramie Longhorn, SLT, ST; 2012 Outdoorsman
• Ram 3500: 2011-2012 Laramie, Laramie Longhorn, SLT, ST
