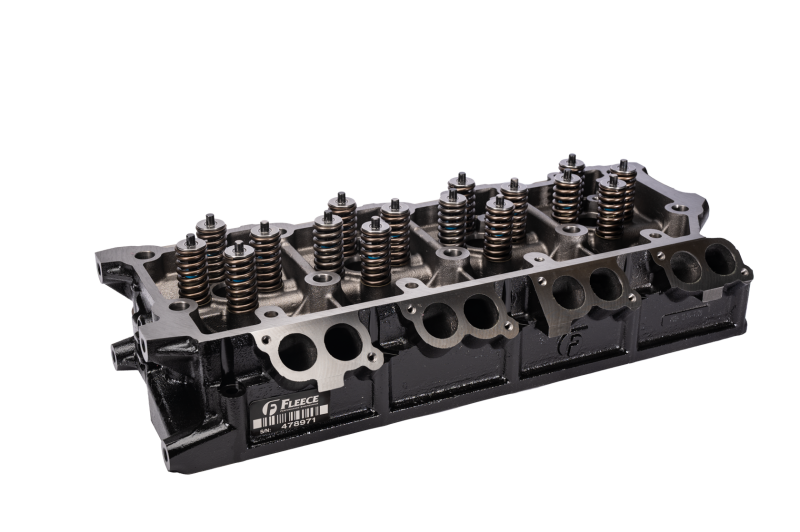

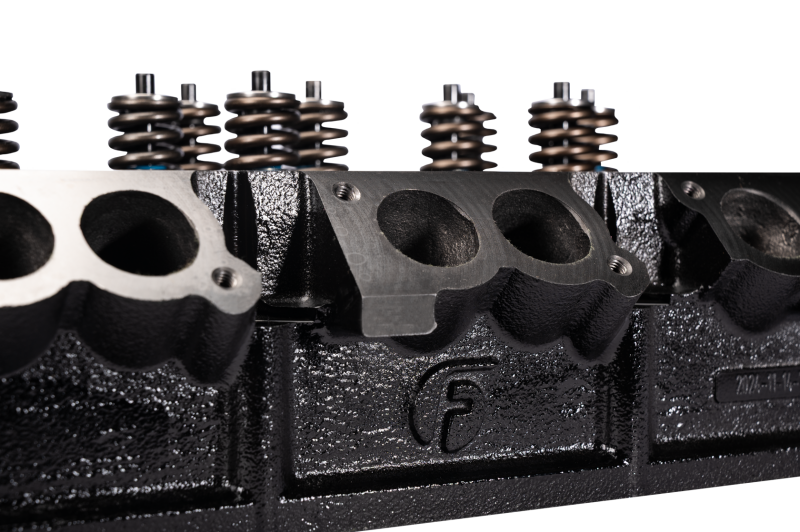

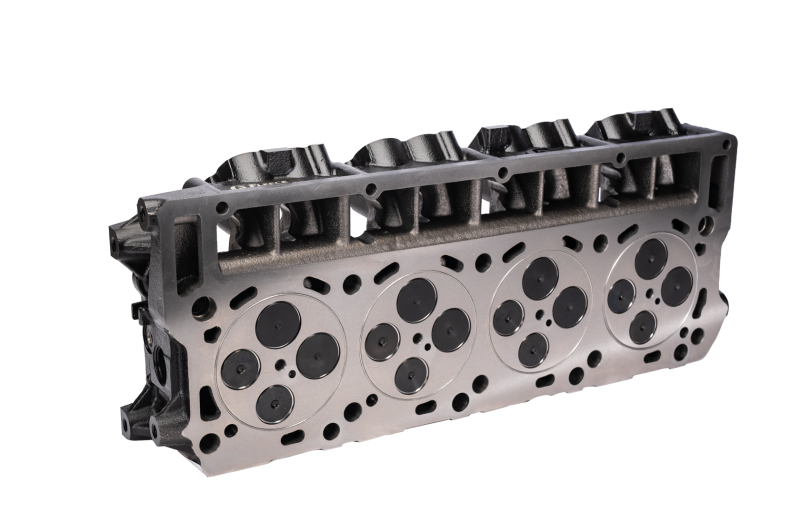

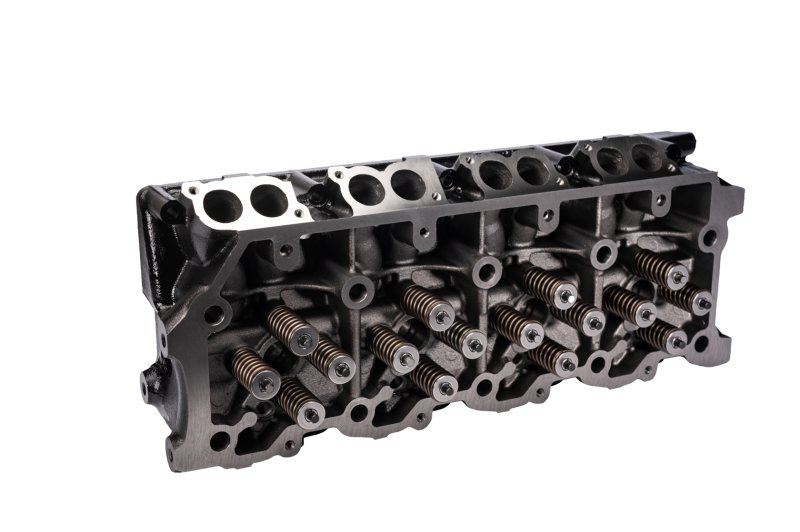

Fleece Freedom Series HD Cylinder Head (18mm Dowel) for 2003-2007 Ford 6.0L Power Stroke

FPEFPE-61-10011-HD

If you're pulling 6.0L heads for gaskets anyway, put better heads back on.

This Freedom Series HD head isn't a run of the mill, rinse and repeat OE casting. Fleece engineered it from the ground up with years of testing and development. This one is the 18mm dowel version, so confirm your engine before you order.

Why the Freedom Series HD

  • Improved casting: higher tensile strength alloy with increased wall thickness and additional material where it counts, for a more durable and longer lasting head
  • Extreme duty valve seats: race proven, stronger than OEM, American made from a tungsten alloy for increased hardness and substantially higher wear resistance vs. a stock replacement seat
  • Single piece O-ring: Fleece's 6.0L head is the only one available with a single piece hoop style O-ring, sealing combustion completely vs. traditional stainless wire that has a seam

Note: All 20mm dowel heads are configured for 2-bolt rocker box configurations.

Note: Fleece recommends 6.4L pushrods (Ford Part No. 8C3Z-6565-B) when installing these heads. 6.4L pushrods are 0.050" shorter than a 6.0L pushrod and will accommodate the tolerance stack ups that can be encountered with a replacement cylinder head.

Note: Head gasket not included. Fleece recommends Ford Part No. KZ3Z-6051-B.

Note: Cylinder head identification: use the flow chart in Fleece's installation instructions to pick the right head and components. The engine serial number is on the rear, driver's side of the engine block. An alternate location is the identification sticker on top of the fuel injector control module (FICM). This only applies for vehicles with their original FICM; if you're not sure the FICM is original, read the serial number on the back of the block.

Specs

  • Dowel size: 18mm
  • Series: Freedom Series HD
  • Engine: 6.0L Powerstroke
  • Part number: FPE-61-10011-HD

Fitment

  • Ford E-350 Club Wagon: 2003-2005 Chateau, XL, XLT
  • Ford E-350 Super Duty: 2003-2007 Base; 2006 Chateau; 2006-2007 XL, XLT
  • Ford Excursion: 2003-2005 Eddie Bauer, Limited, XLT; 2004-2005 XLS
  • Ford F-250 Super Duty: 2004-2007 Harley-Davidson Edition, King Ranch; 2003-2007 Lariat, XL, XLT
  • Ford F-350 Super Duty: 2004-2007 Harley-Davidson Edition; 2003-2007 King Ranch, Lariat, XL, XLT

Available now at PPEI Tuning, shipping fast from our local and nationwide warehouses.

$1,599.00 USD
$1,599.00 USD
Sale Sold out
Shipping calculated at checkout.
