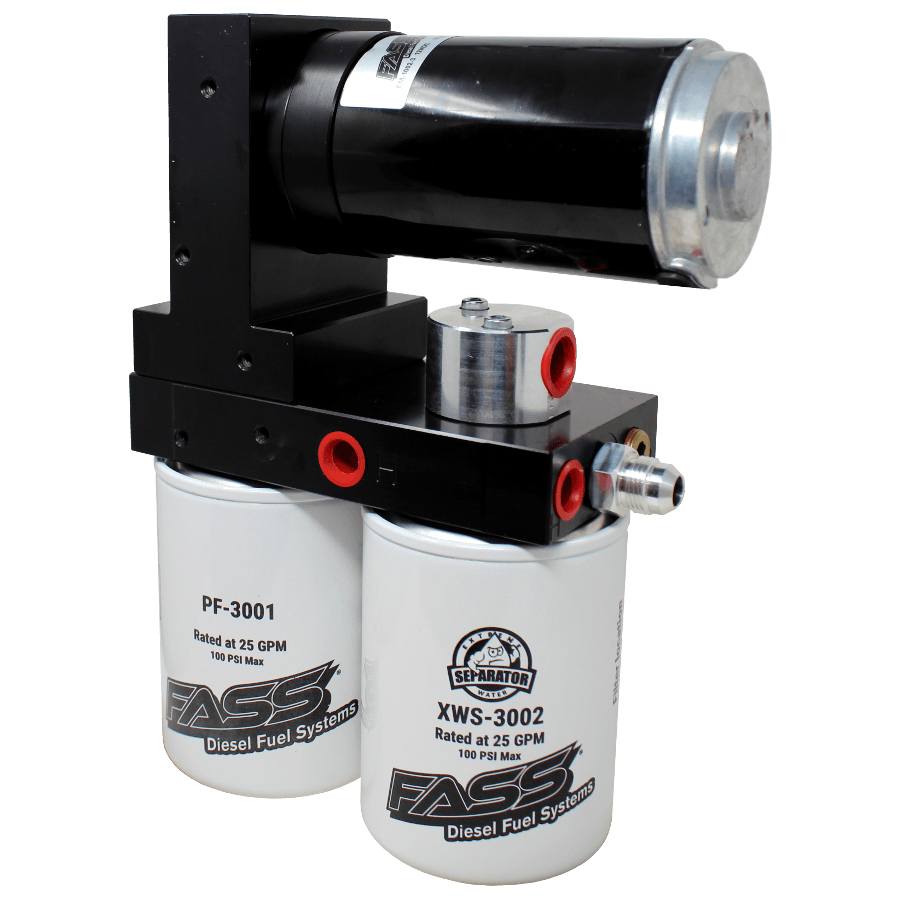

FASS Titanium Signature Series Diesel Fuel System 250GPH GM Duramax 6.6L 2001-2016 - TSC10250G
TSC10250GFASS Diesel Fuel System 2001-2016 GM Duramax 6.6L Titanium Signature Series Verified 250GPH (TSC10250G) Part No: TSC10250G
A FASS Fuel System will be a very beneficial upgrade for your GM Duramax diesel engine, this is because your Duramax doesn't come with a factory System like other diesels. This requires your CP3/CP4 injection System to pull your fuel under a vacuum, adding additional stress to your CP3/CP4 System and risk introduce of additional air/vapor into your fuel injection System.
This is where a Titanium Signature Series FASS Fuel System comes in to help. The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting, quietest and most reliable aftermarket filtration System in the diesel industry. Rated at 250 gallons per hour and backed by our available limited lifetime warranty the Titanium Signature Series fuel System can support your GM Duramax 6.6L diesel engine with enough fuel for 900-1200 HP.
A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your Duramax's injection Systems, effectively extending the life of your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Diesel Fuel Systems patented air/vapor removal process. Duramax diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration System is designed to eliminate those that are fuel related.
This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8 inch Suction Tube and suction fuel line along with a 1/2 inch Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.
The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel. The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry.
This is because here at FASS Diesel Fuel Systems we focus on perfecting our Systems and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door. By doing this we have less than a 1.5 percent failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems.
FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currentsfrom forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure EXTREME cold weather operations!
Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
2001-2016 Duramax 250GPH Fuel System Features:
- New Whisper Technology
- Verified 250 Gallons Per Hour Flow Rating
- Complete Fuel Supply System
- Removes Water, Air/Vapor and Debris from Diesel Fuel
- Bolt Bracket Installation
- Preset 8-10 PSI Fuel Pressure
- Fuel Pressure Gauge Port
- 2 Micron Filtration Rating
- 5/8 inch Suction Lines Fuel Line with 1/2 inch Ports
- 10 Gauge Electrical Harness
- Optional Electric Heater Ports
- Available Limited Lifetime Warranty
- Extended Fuel Injection Component Life
- Increase Horsepower
- Excellent Cold Weather Operation
- Decreased EGT's/Exhaust Temps
- Fuel Mileage Improvement
- Smoother Engine Idle
- 30,000 Mile Filter Life Expectancy
- Quietest System on The Market
- Decreases Carbon Monoxide and Carbon Dioxide Emissions
- Improved Fuel Volume Delivery
