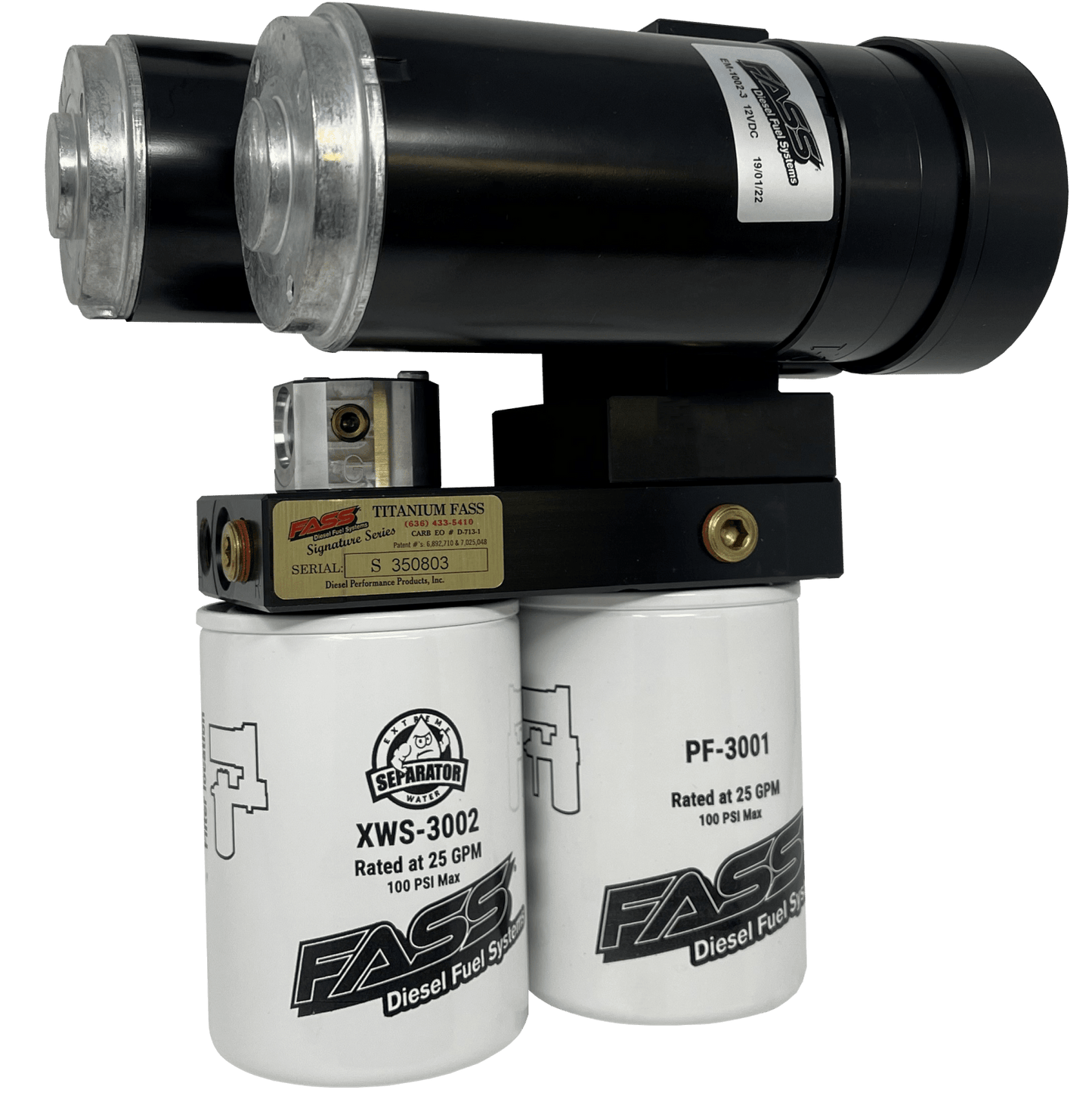

FASS Fuel Systems COMP360G Competition Series 360GPH (100 PSI MAX) - COMP360GCOMP360G
Part No: COMP360G The Competition Series diesel fuel System was specifically designed for high performance diesel applications that demand a large volume of fuel supply. Each Competition Series System comes equipped with our new High Flow Adjustable Regulator which can provide excellent pressure regulation up to 600 gallons per hour! The Competition Series utilizes our Extreme Water Separator that removes over 99 percent of the water that can be found in diesel fuel (3rd party laboratory tested) and filters out damaging particulates down to 2 microns. This is a universal System and does not come with fuel lines, wiring, or fittings.
- Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
- Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient.
Competition Series 360G Information:
- Supplied with Our Universal Mounting Bracket.
- Pressure Adjustable from 0-100 PSI.
- -10 AN Inlet, Outlet, and Pressure Regulator Ports.
- Removes Water, Air and Debris from Diesel Fuel.
- 2 Micron Filtration Rating.
- 1/8 NPT Pressure Gauge Port.
- Easier to prime than a mechanical gear System.
- 100 PSI Maximum Pressure.
Competition Series 330G Flow Rates:
- 360 Gallons Per Hour at Free Flow (0 PSI).
- 348 Gallons Per Hour at 10 PSI.
- 336 Gallons Per Hour at 20 PSI.
- 324 Gallons Per Hour at 30 PSI.
- 318 Gallons Per Hour at 40 PSI.
- 312 Gallons Per Hour at 50 PSI.
- 306 Gallons Per Hour at 60 PSI.
- 294 Gallons Per Hour at 70 PSI.
- 282 Gallons Per Hour at 80 PSI.
- 276 Gallons Per Hour at 90 PSI.
- 264 Gallons Per Hour at 100 PSI.
Two WH-1006-3R can be purchased to power the FASS Competition Series motors if you do not wish to build a custom wire harness.
